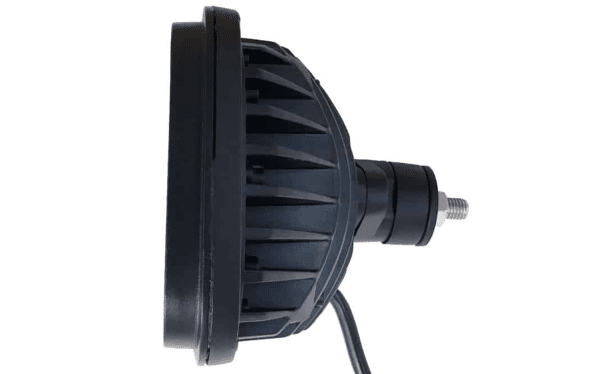

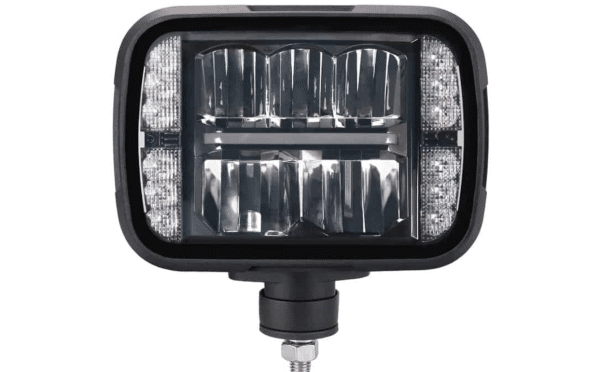

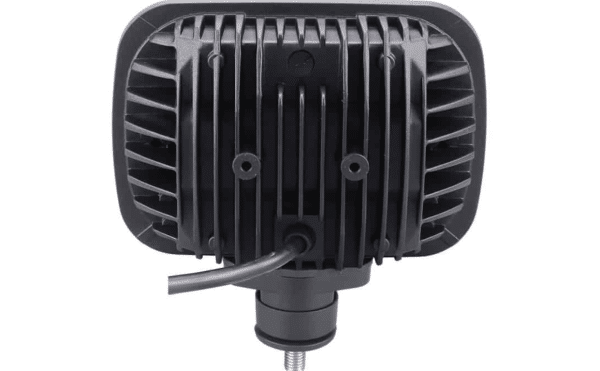

Replace your old 5×7 or 7×6 rectangle sealed beam style headlights. Especially designed reflectors provide plenty of light exactly where needed. Tough construction with tempered glass self-heated lens and solid cast aluminum housing. Plug & Play install.

Sold individually.



Size: 5″ x 7″

Beam: Hi/Lo Beam

Lumens: High Beam: 3,000 Lumens, Low Beam: 2,400 Lumens

Colour Temperature: 6,000K – Daylight

Watts: 30W Per Light

Amp. Draw: High Beam: 1.78A Per Light, Low Beam: 1.48A

Voltage Range : 10V-30V DC

LEDS: 3 LEDs for High Beam, 2 LEDs for Low Beam

Chip Type: 10W CREE for High Beam / 15W OSRAM for Low Beam

IP Rating: IP67

Certification Standard: DOT

Warranty: 2 Years From Ship Date


Always check with regional rules and regulations regarding the use of auxiliary driving lights. NightRider™ LEDS strives to deliver the safest and most lawful lights, but cannot be held accountable for regional restrictions, improper mounting, aiming, or wiring.
